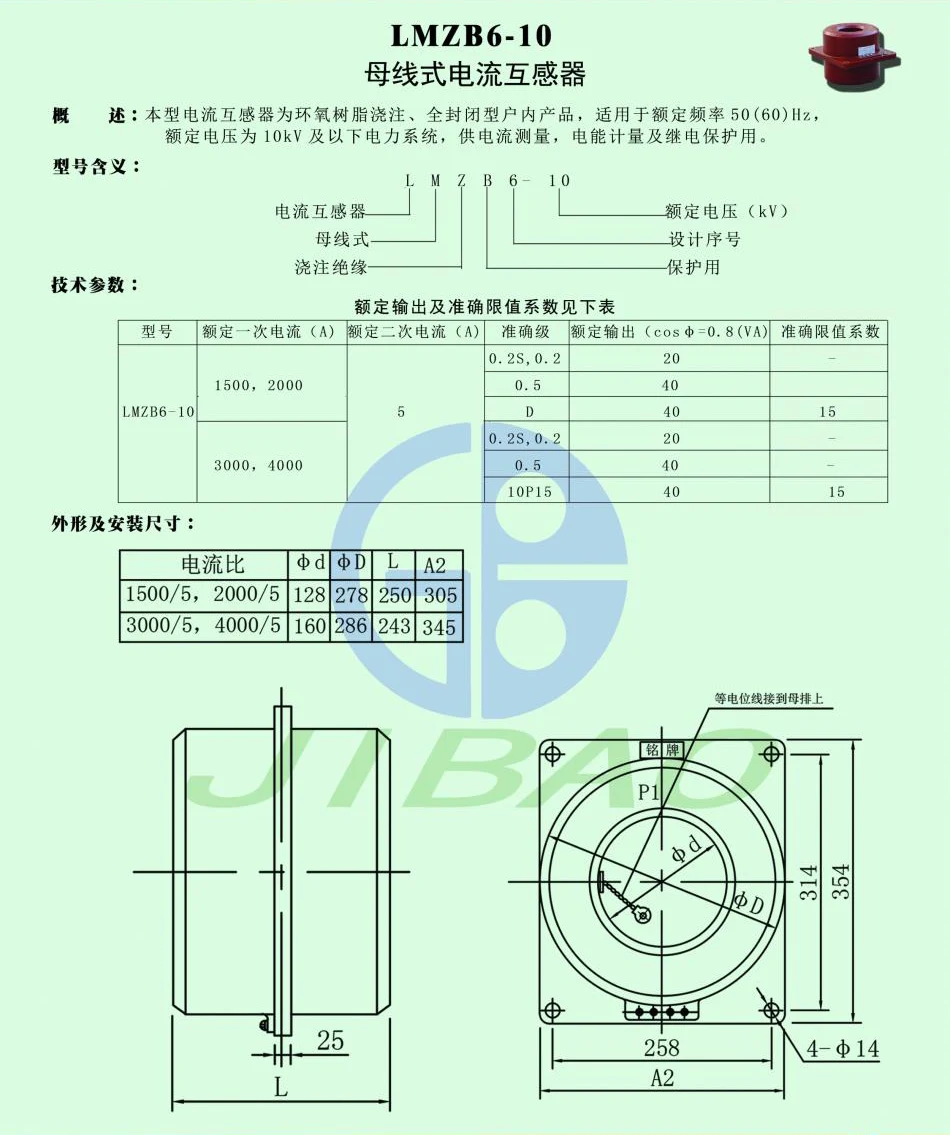

LMZB6-10
This type of current transformer is epoxy resin casting, fully enclosed indoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV and the following power system, for current measurement, power measurement and relay protection.
Description
Overview:This type of current transformer is epoxy resin casting, fully enclosed indoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV and the following power system, for current measurement, power measurement and relay protection.
Model meaning:
L-Current transformer
M-Busbar type
Z-cast insulation
10-Rated voltage (kV)
B-Protection
6-Design number
Category:
10-35kV Current Sensor
Keywords:
Current/Voltage transformer
