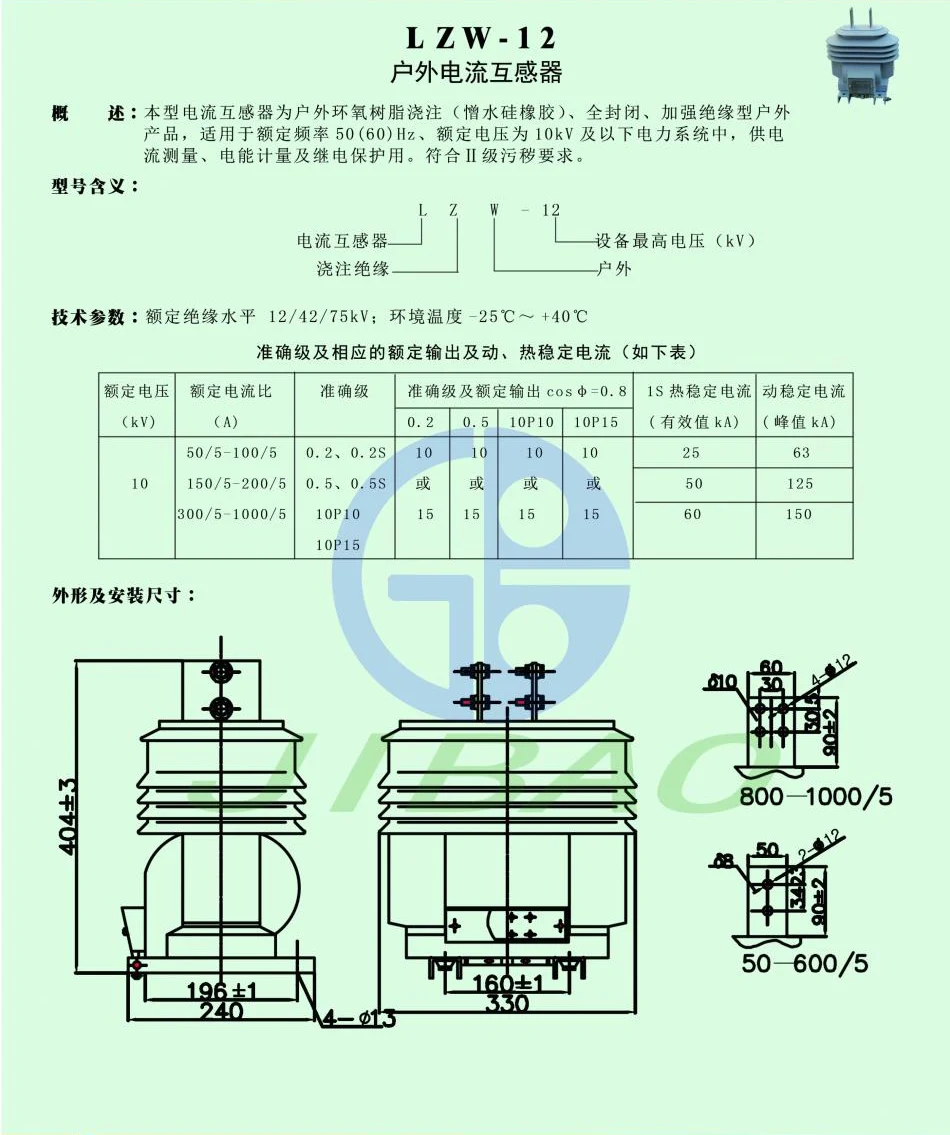

LZW-12(Outdoor)
This type of current transformer is an outdoor epoxy resin casting (water silicone rubber), fully enclosed, reinforced insulation type outdoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV and the following power system, for current measurement, power measurement and relay protection. It meets the requirement of class II filth.
Description
Overview：This type of current transformer is an outdoor epoxy resin casting (water silicone rubber), fully enclosed, reinforced insulation type outdoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV and the following power system, for current measurement, power measurement and relay protection. It meets the requirement of class II filth.
Model meaning:
L-current transformer
Z-cast insulation
12-Maximum voltage of equipment (kV)
W-Outdoor
Technical parameters: rated insulation level 12/42/75kV; ambient temperature -25 ℃ ~ +40 ℃
Category:
10-35kV Current Sensor
Keywords:
Current/Voltage transformer
