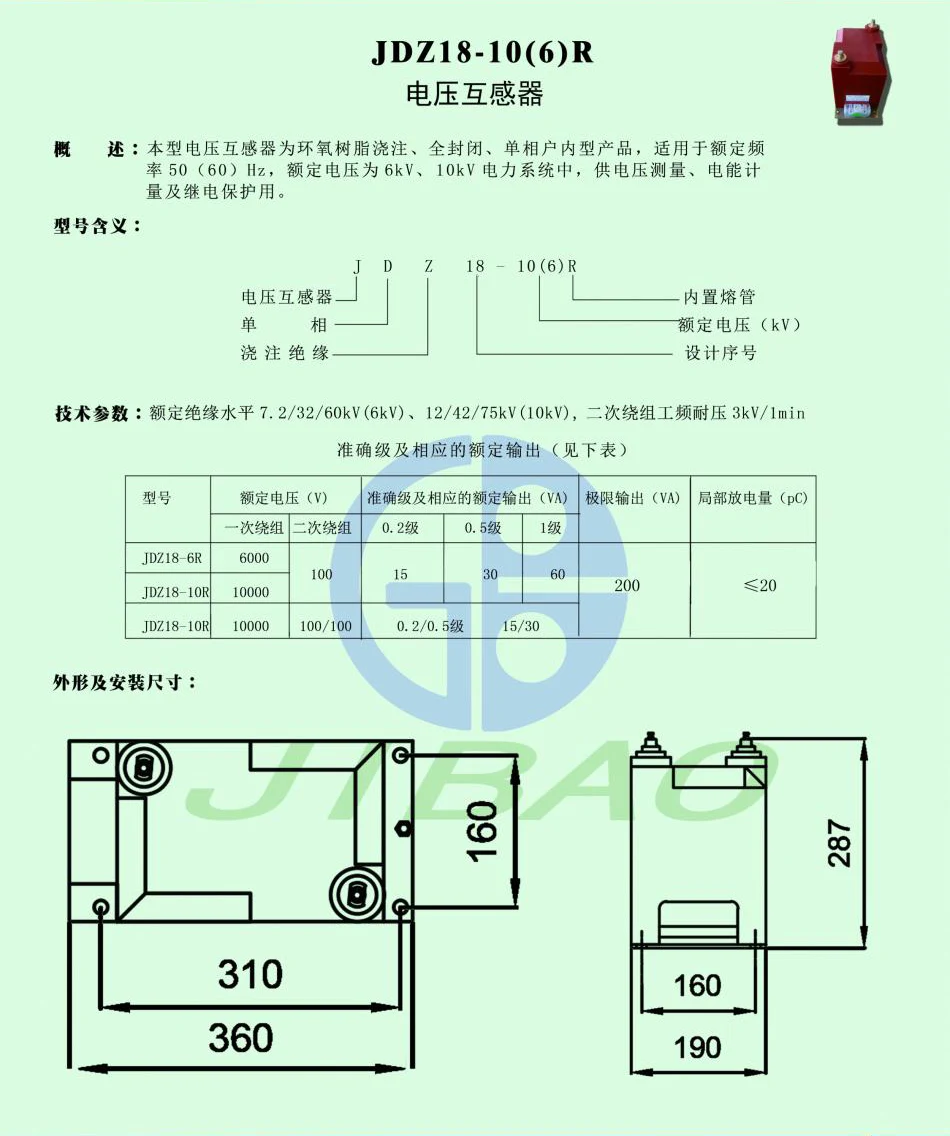

JDZ(X)10(18)-10R
This type voltage transformer is epoxy resin casting, fully enclosed, single-phase indoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 6kV, 10kV power system for voltage measurement, power measurement and relay protection.
Description
Overview：This type voltage transformer is epoxy resin casting, fully enclosed, single-phase indoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 6kV, 10kV power system for voltage measurement, power measurement and relay protection.
Model meaning:
J-voltage transformer
D-single-phase
Z-Cast insulation
R-Built-in fuse
18-Design number
10(6)-Rated voltage (Kv)
Technical parameters: rated insulation level 7.2/32/60kV (6kV), 12/42/75kV (10kV), secondary winding frequency withstand voltage 3kV/1min
Category:
10-35kV Voltage Sensor
Keywords:
Current/Voltage transformer
