JSZV-10R

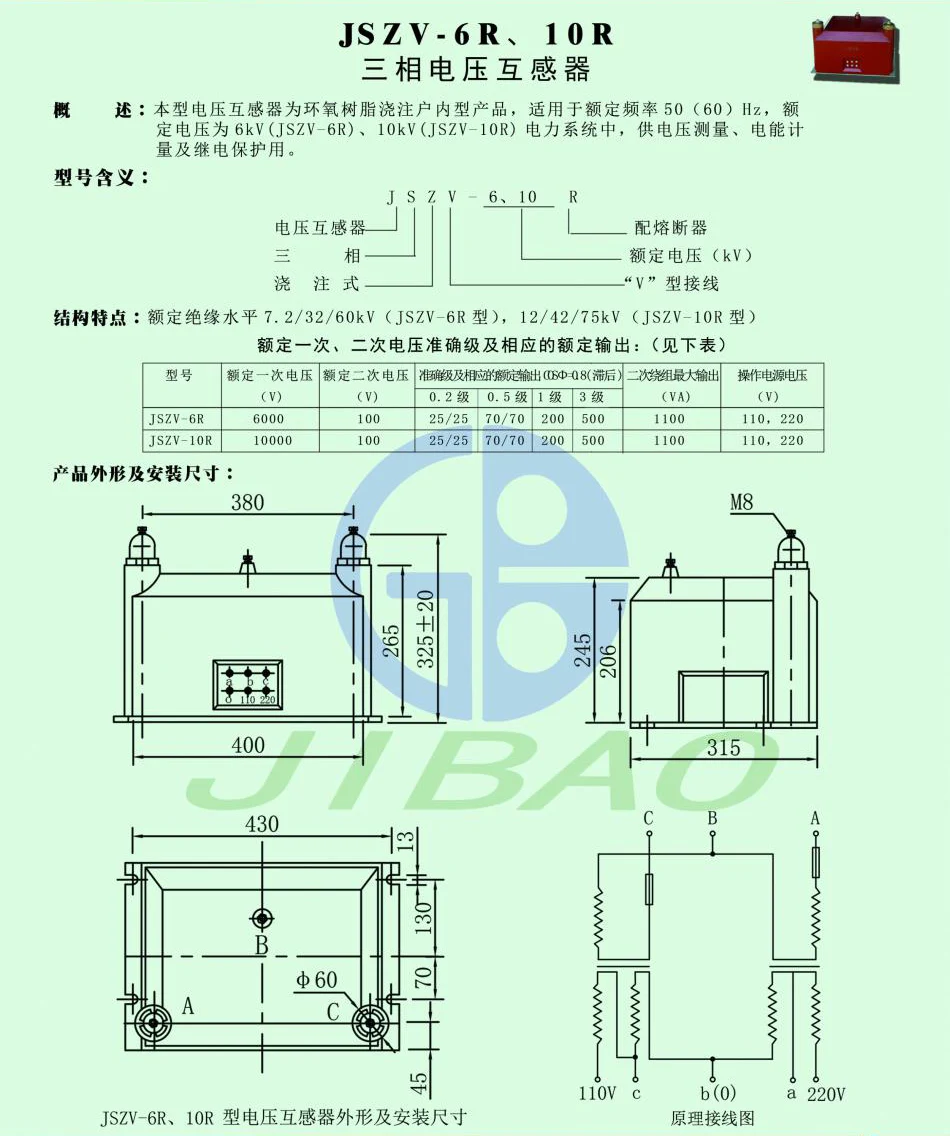

This type of voltage transformer is epoxy resin casting indoor type products, suitable for rated frequency 50(60)Hz, rated voltage 6kV(JSZV-6R), 10kV(JSZV-10R) power system, for voltage measurement, power measurement and relay protection.
Description
Overview：This type of voltage transformer is epoxy resin casting indoor type products, suitable for rated frequency 50(60)Hz, rated voltage 6kV(JSZV-6R), 10kV(JSZV-10R) power system, for voltage measurement, power measurement and relay protection.
J-Voltage transformer
S-Three-phase
Z-cast type
6/10-Rated voltage(Kv)
V-"V" type wiring
R-with fuse
Technical parameters: rated insulation level 7.2/32/60kV (JSZV-6R type), 12/42/75kV (JSZV-10R type)
