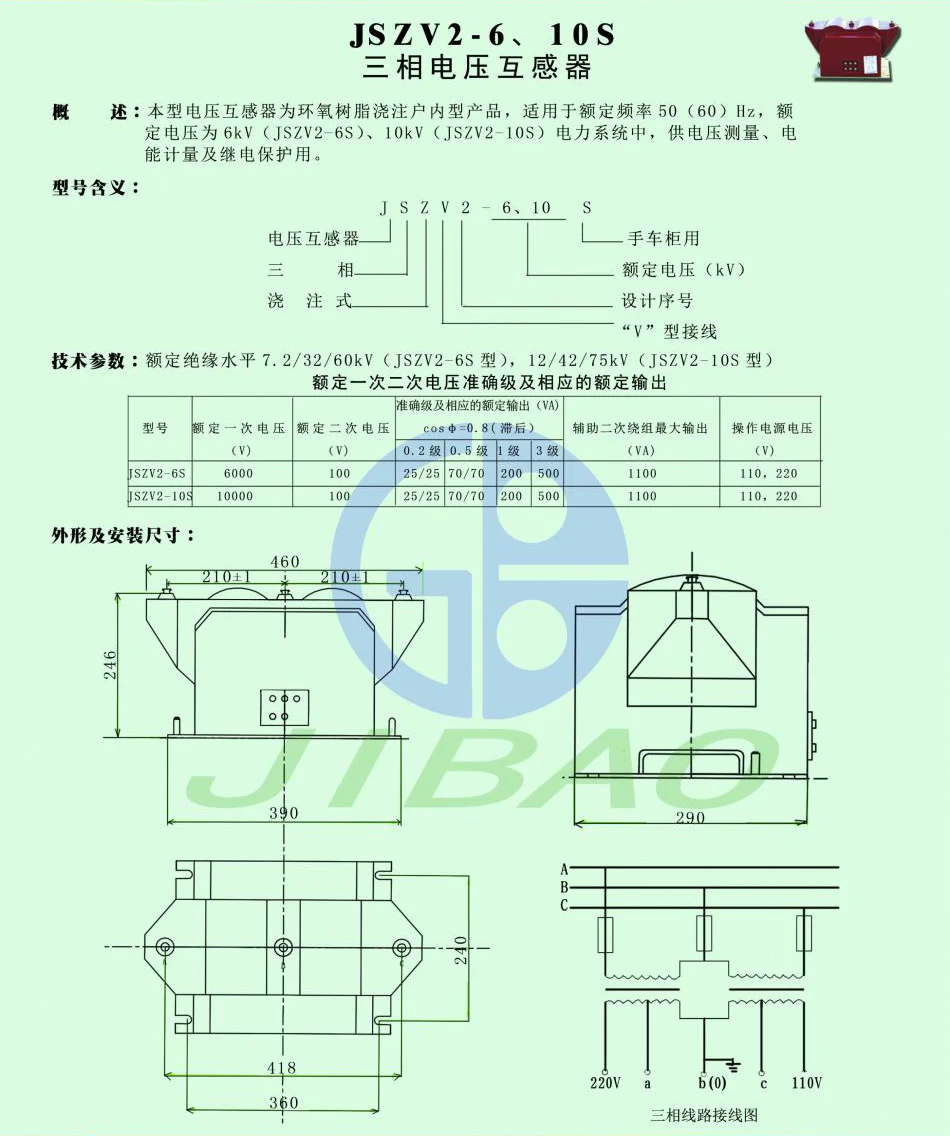

JSZV-10S
This type of voltage transformer is epoxy resin casting indoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 6kV (JSZV2-6S), 10kV (JSZV2-10S) power system, for voltage measurement, power measurement and relay protection.
Description
Overview：This type of voltage transformer is epoxy resin casting indoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 6kV (JSZV2-6S), 10kV (JSZV2-10S) power system, for voltage measurement, power measurement and relay protection.
J-Voltage transformer
S-Three-phase
Z-cast type
6/10-Rated voltage (Kv)
2-Design number
V-"V" type wiring
S- handcart cabinet
Technical parameters: rated insulation level 7.2/32/60kV (JSZV2-6S type), 12/42/75kV (JSZV2-10S type)
Category:
10-35kV Voltage Sensor
Keywords:
Current/Voltage transformer
