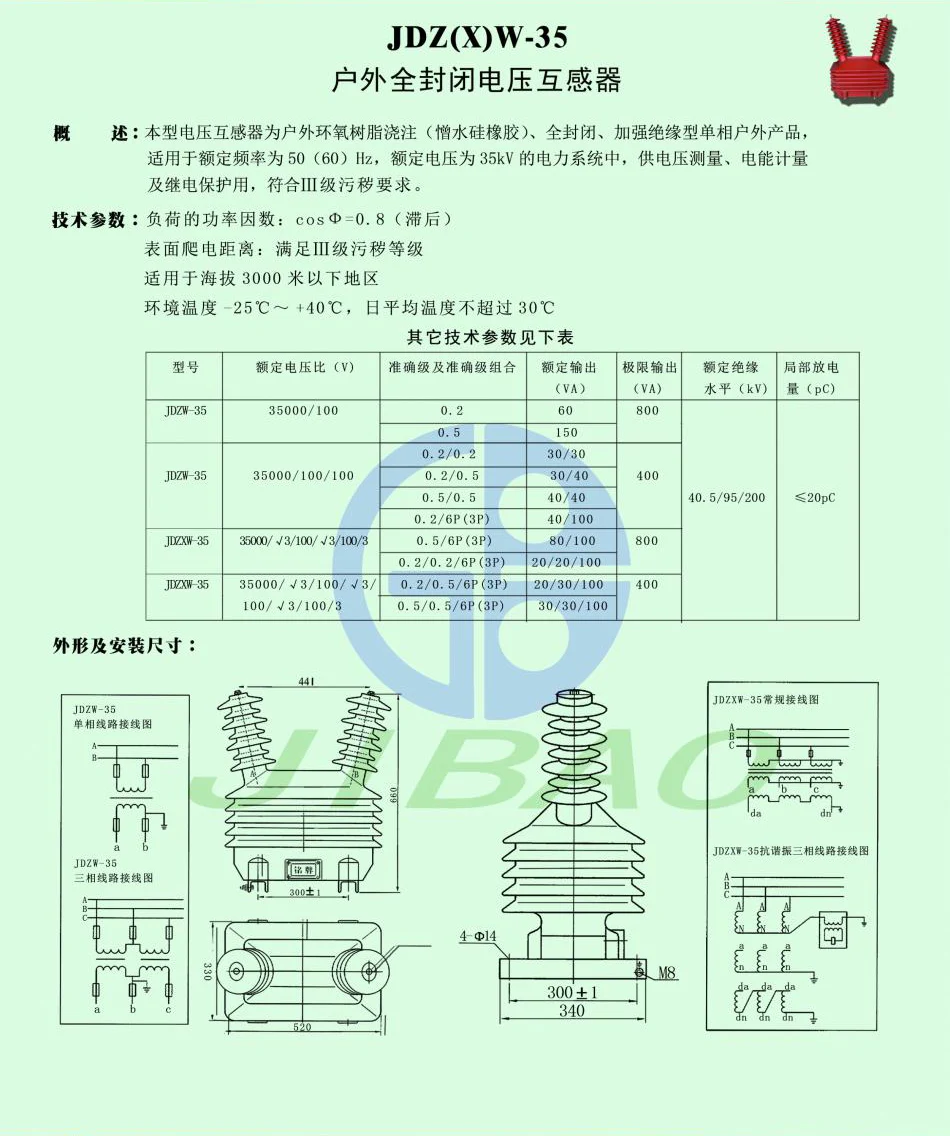

JDZ(W)-35
The voltage transformer is an outdoor epoxy resin casting (water-repellent silicone rubber), fully enclosed, reinforced insulation single-phase outdoor products, suitable for rated frequency of 50 (60) Hz, rated voltage of 35kV power system for voltage measurement, power measurement and relay protection, in line with the requirements of Ⅲ level of filth.
Description
Overview：The voltage transformer is an outdoor epoxy resin casting (water-repellent silicone rubber), fully enclosed, reinforced insulation single-phase outdoor products, suitable for rated frequency of 50 (60) Hz, rated voltage of 35kV power system for voltage measurement, power measurement and relay protection, in line with the requirements of Ⅲ level of filth.
Technical parameters:
Power factor of load: cosФ=0.8 (lagging)
Surface creepage distance: to meet the Ⅲ grade filth level
Applicable to areas below 3000 meters above sea level
Ambient temperature -25℃~+40℃, the average daily temperature does not exceed 30℃.
Category:
10-35kV Voltage Sensor
Keywords:
Current/Voltage transformer
