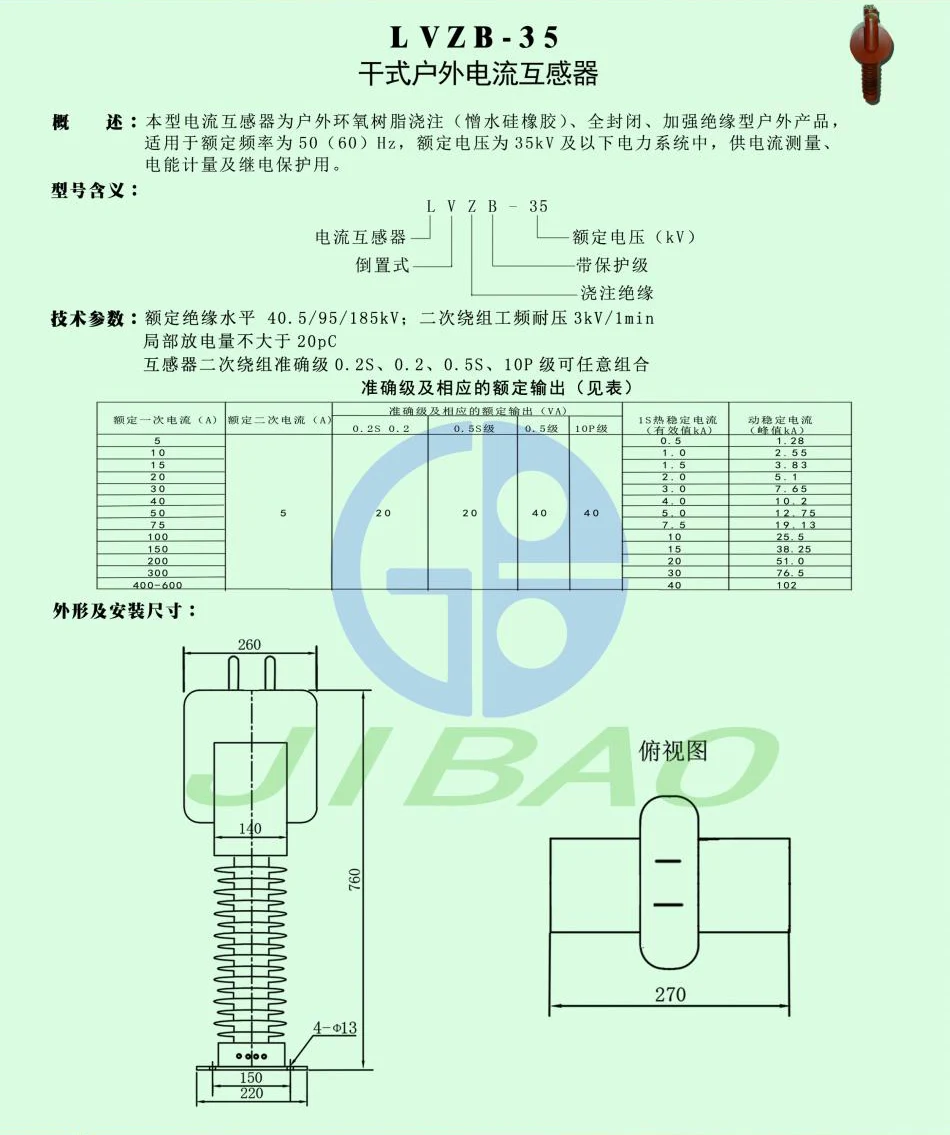

LVZB-35
This type of current transformer for outdoor epoxy resin casting (water silicone), fully enclosed, reinforced insulation type outdoor products for the rated frequency of 50 (60) Hz, rated voltage of 35kV and the following power system, for current measurement, power measurement and relay protection.
Description
Overview:This type of current transformer for outdoor epoxy resin casting (water silicone), fully enclosed, reinforced insulation type outdoor products for the rated frequency of 50 (60) Hz, rated voltage of 35kV and the following power system, for current measurement, power measurement and relay protection.
Model meaning:
L-current transformer
V-Inverted
Z-cast insulation
35-Rated voltage (kV)
B-with protection level
Technical Parameters：
Rated insulation level 40.5/95/185kV; secondary winding frequency withstand voltage 3kV/1min
Partial discharge is not more than 20pC transformer secondary winding accuracy level 0.2S, 0.2, 0.5S, 10P level can be arbitrary combinations
Category:
10-35kV Current Sensor
Keywords:
Current/Voltage transformer
