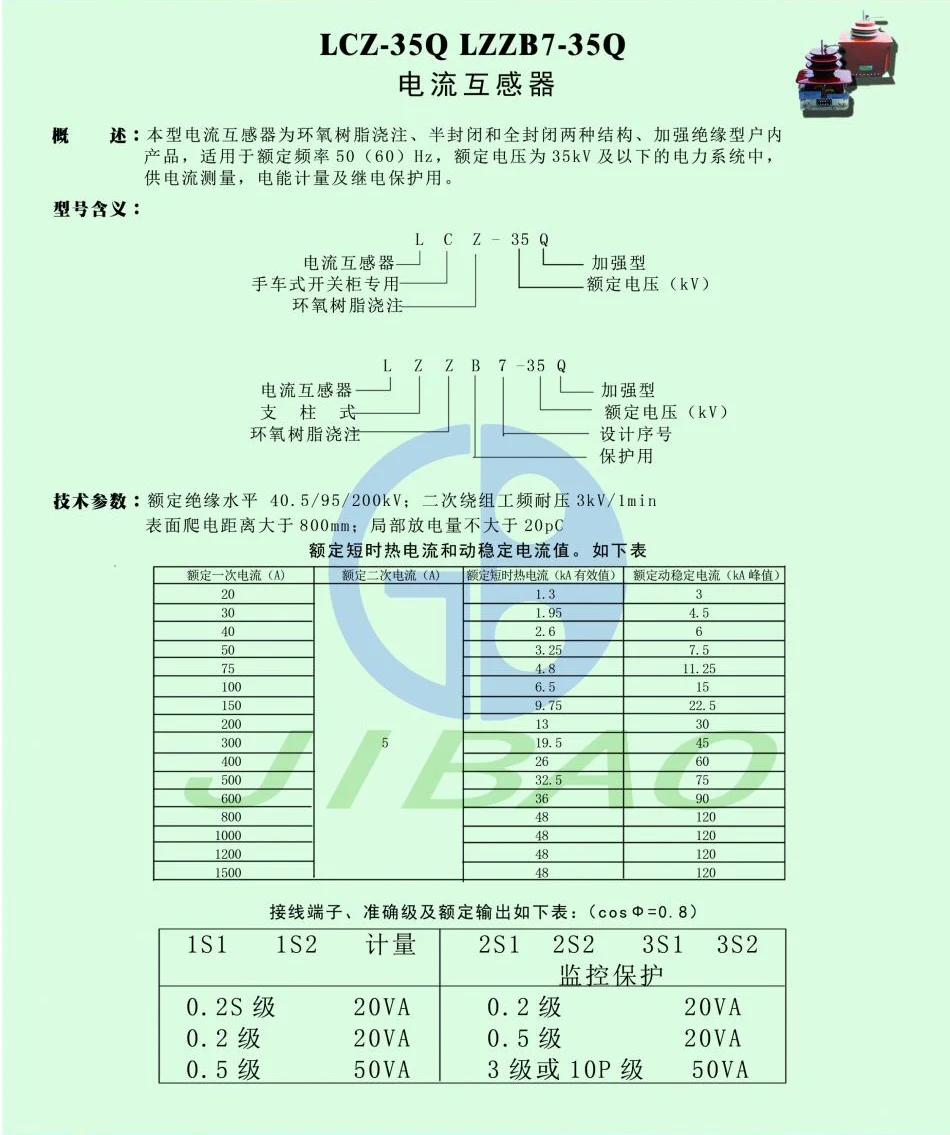

LCZ-35
This type of current transformer is epoxy resin casting, semi-enclosed and fully enclosed two structures, reinforced insulation type indoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 35kV and the following power system for current measurement, power measurement and relay protection.
Description
Overview：This type of current transformer is epoxy resin casting, semi-enclosed and fully enclosed two structures, reinforced insulation type indoor products, suitable for rated frequency 50 (60) Hz, rated voltage of 35kV and the following power system for current measurement, power measurement and relay protection.
Model meaning:
L-Current transformer
L-Specialized for handcart type switchgear
Z-Epoxy resin casting
35-Rated voltage (kV)
Q-Reinforced
Technical parameters: rated insulation level 40.5/95/200kV; secondary winding frequency withstand voltage 3kV/lmin surface creepage distance greater than 800mm: partial discharge is not greater than 20pC
Category:
10-35kV Current Sensor
Keywords:
Current/Voltage transformer
