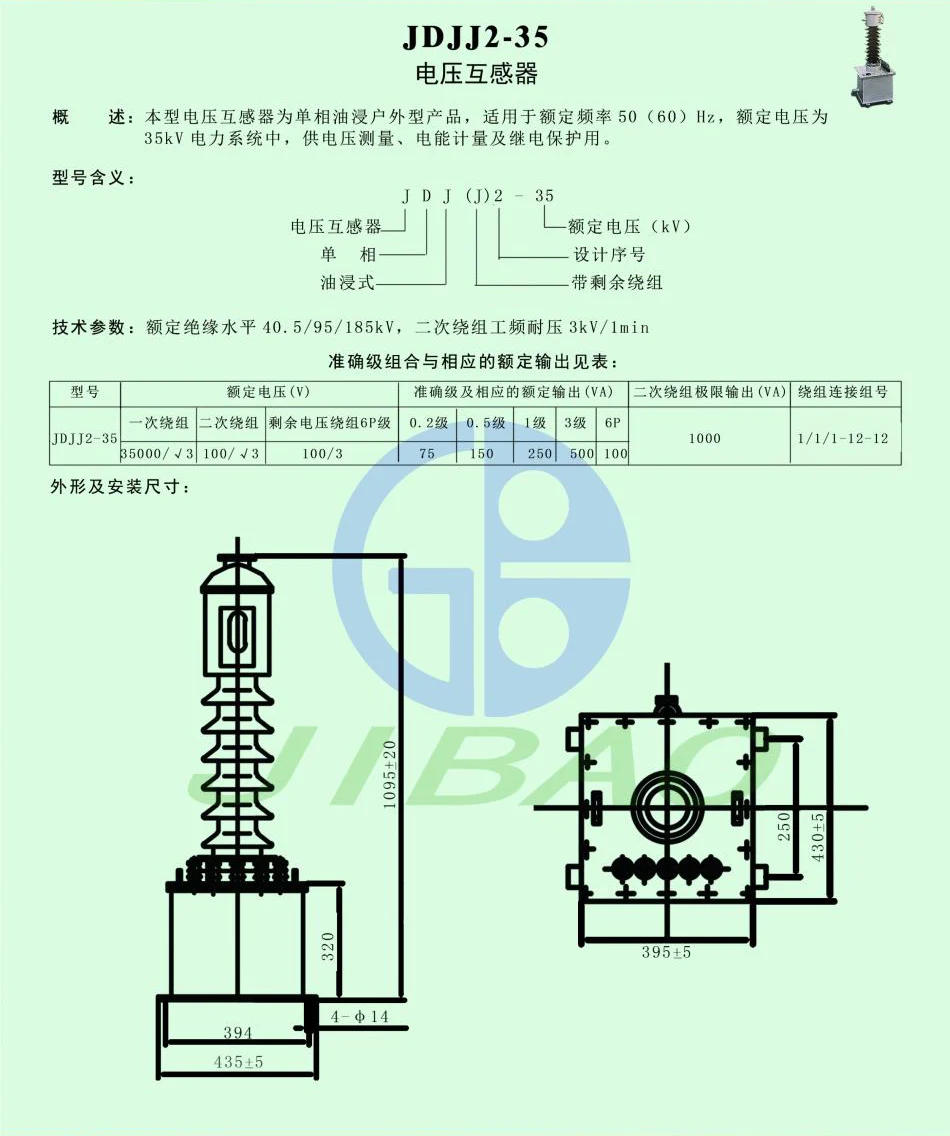

JDJ(J)2-35
This type voltage transformer is single-phase oil-immersed outdoor type product, suitable for rated frequency 50(60)Hz, rated voltage of 35kV power system, for voltage measurement, power measurement and relay protection.
Description
Overview: This type voltage transformer is single-phase oil-immersed outdoor type product, suitable for rated frequency 50(60)Hz, rated voltage of 35kV power system, for voltage measurement, power measurement and relay protection.
Model meaning:
J-voltage transformer
D-single-phase
J-Oil-immersed
J-with residual winding
2-Design number
35-Rated voltage(Kv)
Technical parameters: rated insulation level 40.5/95/185kV, secondary winding frequency withstand voltage 3kV/1min
Category:
10-35kV Voltage Sensor
Keywords:
Current/Voltage transformer
