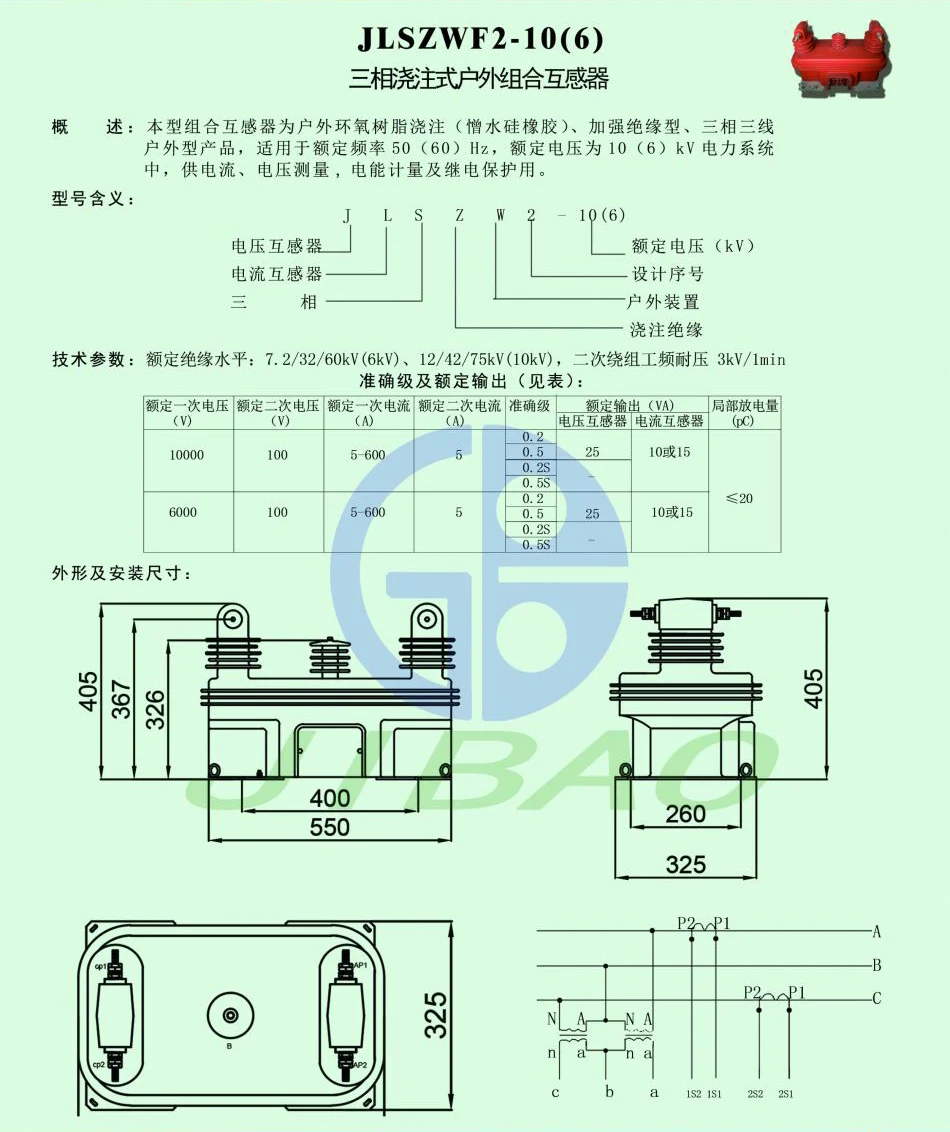

JLSZWF2-10
The combination transformer is outdoor epoxy resin casting (water silicone), reinforced insulation, three-phase three-wire outdoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 10 (6) kV power system for current and voltage measurement, power measurement and relay protection.
Description
Overview：The combination transformer is outdoor epoxy resin casting (water silicone), reinforced insulation, three-phase three-wire outdoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 10 (6) kV power system for current and voltage measurement, power measurement and relay protection.
Model meaning:
J-Voltage transformer
L-Current transformer
S-Three-phase
Z-Cast insulation
V-"V" type wiring
W-Outdoor device
2-Design number
10(6)-Rated Voltage(kV)
Technical parameters: rated insulation level: 7.2/32/60kV (6kV), 12/42/75kV (10kV), frequency withstand voltage of the secondary winding 3kV/1min.
Category:
10-35kV Combined Sensor
Keywords:
Current/Voltage transformer
