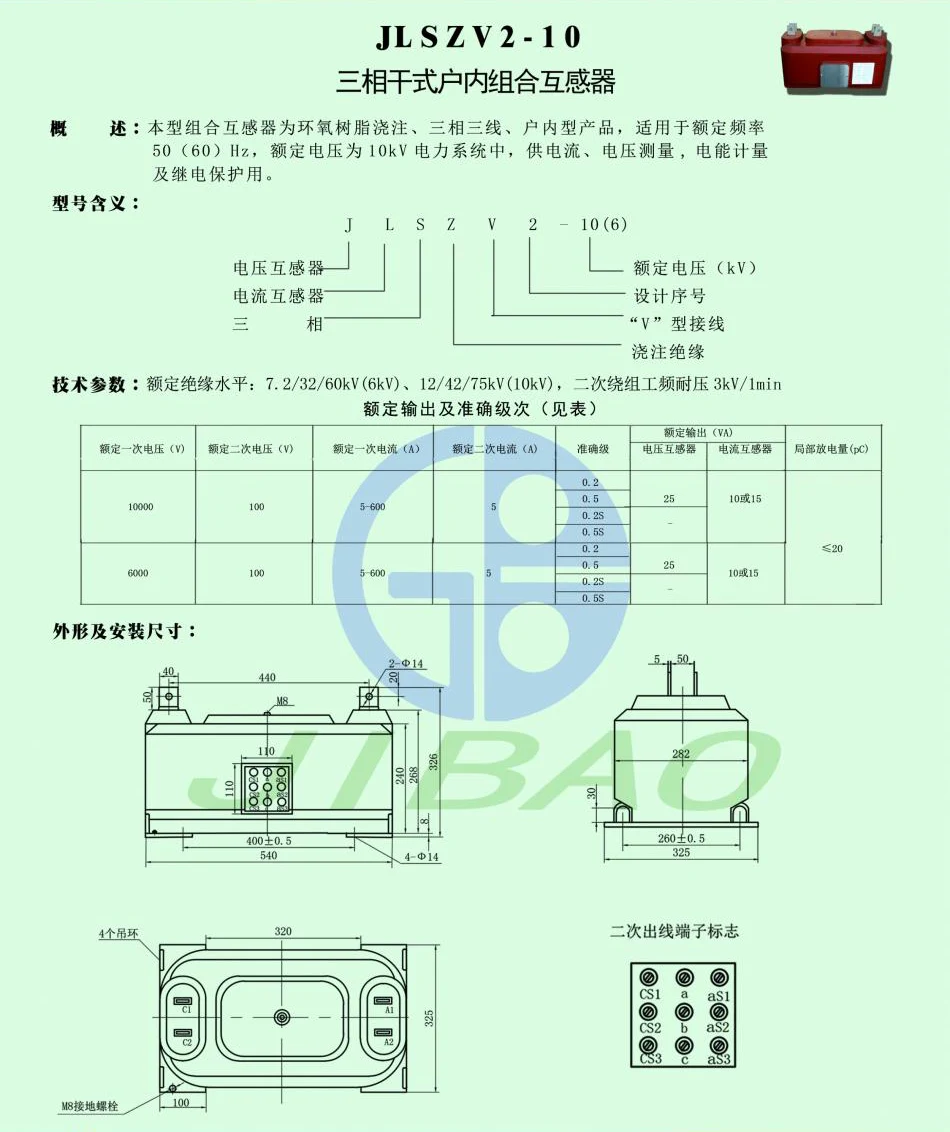

JLSZV2-10
The combination transformer is an epoxy resin casting, three-phase, three-wire, indoor type product, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV power system, for current and voltage measurement, power measurement and relay protection.
Description
Overview：The combination transformer is an epoxy resin casting, three-phase, three-wire, indoor type product, suitable for rated frequency 50 (60) Hz, rated voltage of 10kV power system, for current and voltage measurement, power measurement and relay protection.
Model meaning:
J-voltage transformer
L-Current transformer
S-Three-phase
Z-Cast insulation
V-"V" type wiring
W-Oil-immersed
10(6)-Rated Voltage(kV)
Technical parameters: rated insulation level: 7.2/32/60kV (6kV), 12/42/75kV (10kV), frequency withstand voltage of the secondary winding 3kV/1min.
Category:
10-35kV Combined Sensor
Keywords:
Current/Voltage transformer
