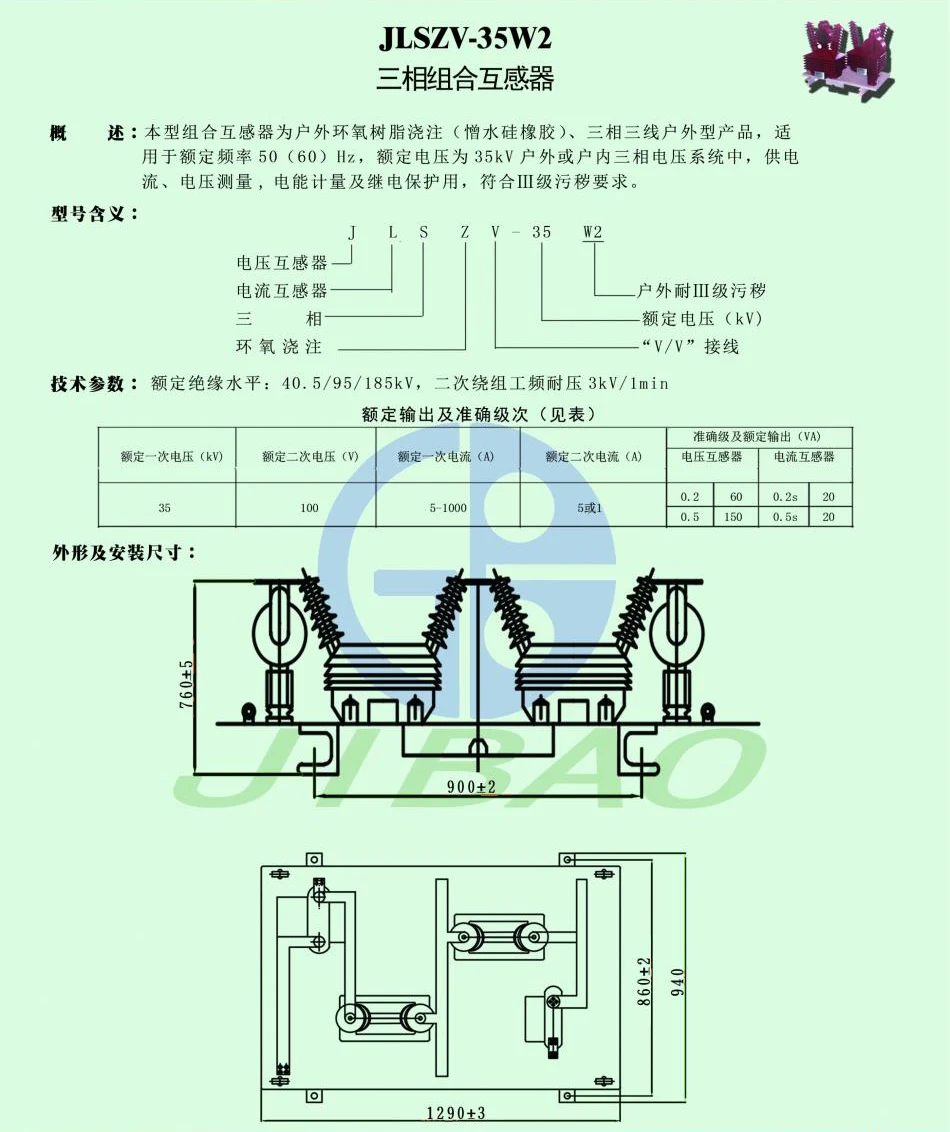

35kV three-phase three-wire
This type of combination transformer for outdoor epoxy resin casting (water silicone rubber), three-phase three-wire outdoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 35kV outdoor or indoor three-phase voltage system for current and voltage measurement, power measurement and relay protection, in line with the requirements of the level of filth.
Description
Overview: This type of combination transformer for outdoor epoxy resin casting (water silicone rubber), three-phase three-wire outdoor type products, suitable for rated frequency 50 (60) Hz, rated voltage of 35kV outdoor or indoor three-phase voltage system for current and voltage measurement, power measurement and relay protection, in line with the requirements of the level of filth.
Model Meaning：
J-Voltage transformer
L-Current transformer
S-Three-phase
Z-Epoxy casting
35-Rated voltage (kV)
V-"V/V" type wiring
W2-Outdoor Class III Filth Resistant
Technical parameters: rated insulation level: 40.5/95/185kV, secondary winding frequency withstand voltage 3kV/1min
Category:
10-35kV Combined Sensor
Keywords:
Current/Voltage transformer
