Transformer special meter

Product Overview

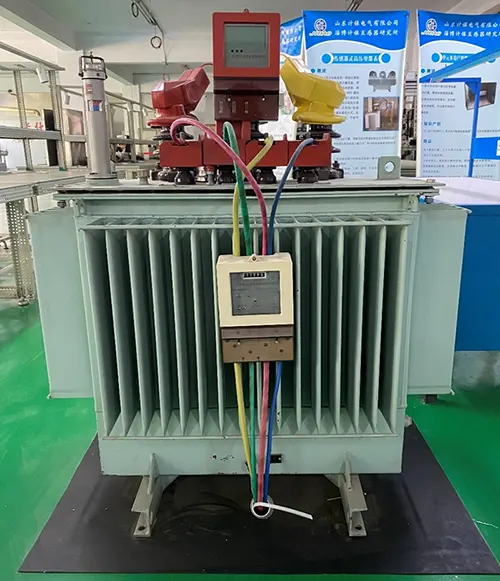

Transformer-specific power meter made of epoxy resin casting, directly installed in the secondary side of the transformer, power measurement, without the need to match the transformer, without anti-stealing box can completely eliminate the phenomenon of power theft, reduce investment, easy to install.

Model Meaning: DTS942-B

D Energy Meter

T Three-phase four-wire

S Electronic

942 Design serial number

B Transformer-specific

Performance Characteristics

● Adopting advanced chip and special production technology, high precision and low power consumption.

●Convenient installation, reliable operation, free of calibration and maintenance.

●Fully sealed, good waterproof performance, can be used outdoors.

●No transformer, no wiring and contact points, can not implement power theft, will not burn the end of the meter phenomenon, cost savings;

●Wide current compliance range.

●Flat error curve, no leakage of electricity.

●With pulse output interface and 485 communication interface, the communication protocol is DL/T645-1997.

●Measure the transformer error and the overall error of the energy meter separately.

The installation distance can be adjusted according to different sizes of transformers.

Main Technical Parameters

●Specifications and main parameters are in line with all technical requirements of GB/T17215-2002/IEC61036:2000 standard.

●Accuracy level: 0.2S, 0.5S.

●Scope of application: suitable for use in transformers of 315kVA and below;.

●Rated current 50A,100A,200A,300A,500A
